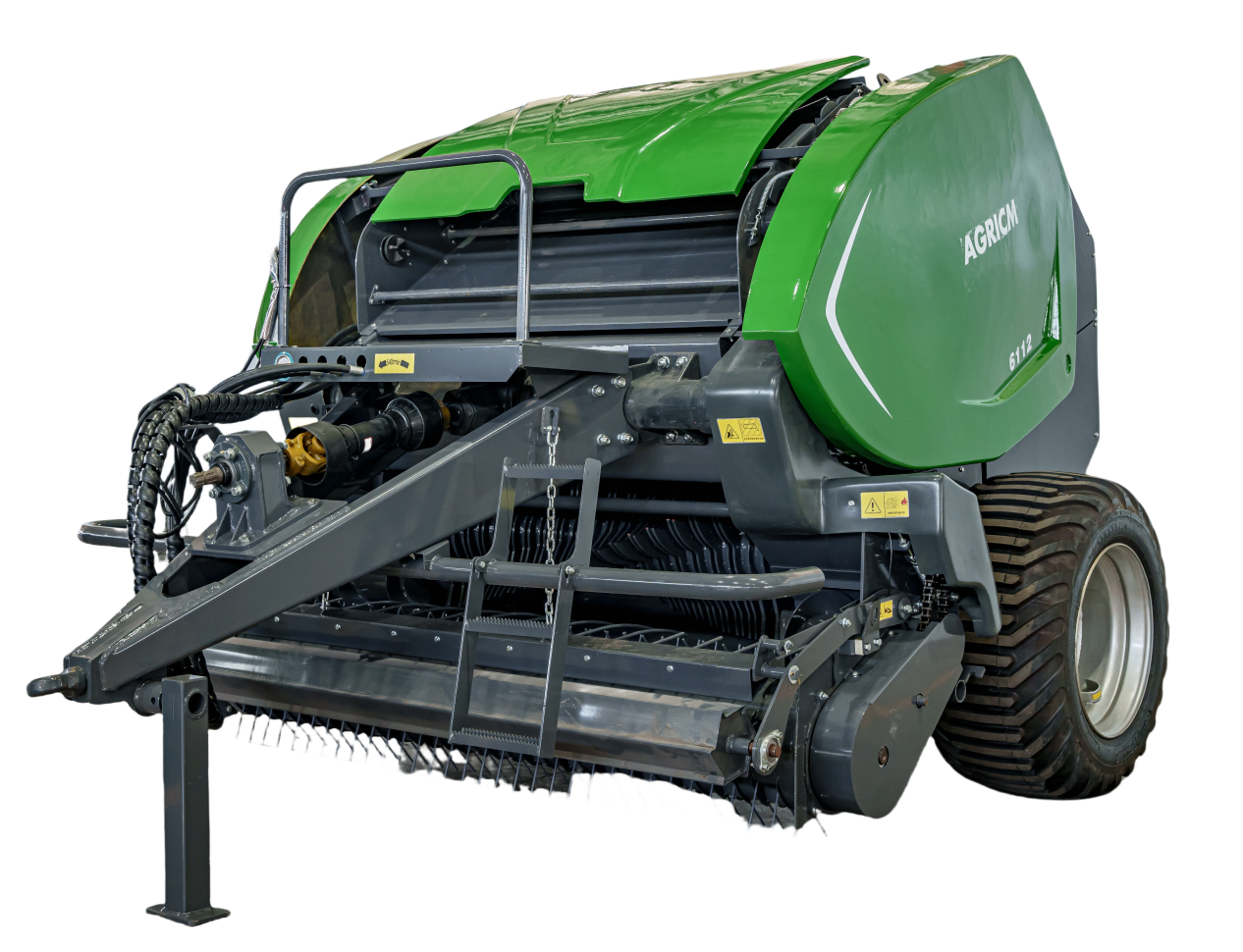

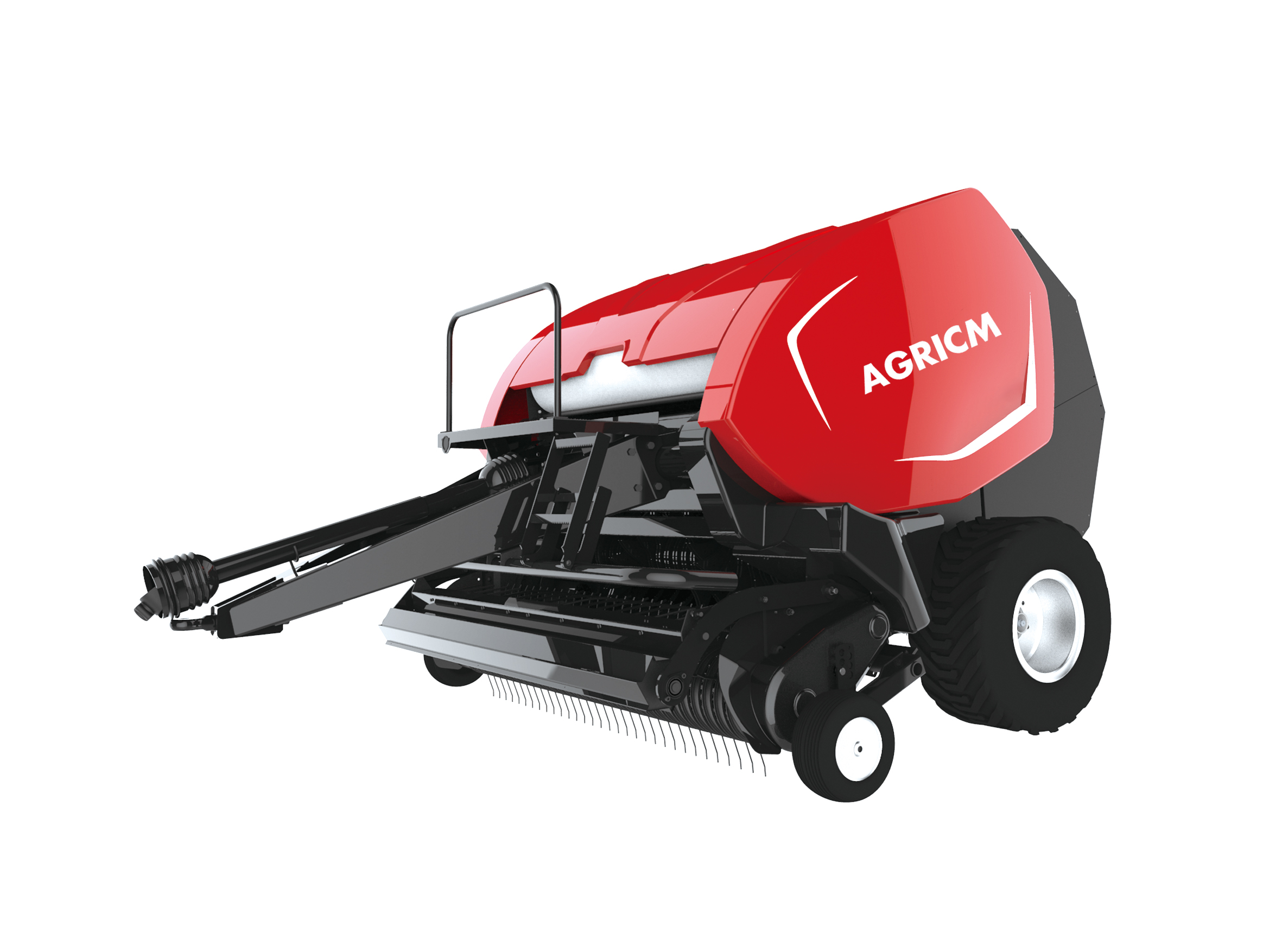

AGRICM Round Baler is a forage harvesting machine designed primarily for field pickup and baling operations. This machine automatically gathers windrowed forage from the field, compacts it into cylindrical bales, and binds them with nylon net wrapping.
AGRICM Round Baler is a forage harvesting machine designed primarily for field pickup and baling operations. This machine automatically gathers windrowed forage from the field, compacts it into cylindrical bales, and binds them with nylon net wrapping.
AGRICM Round Baler is a forage harvesting machine designed primarily for field pickup and baling operations. This machine automatically gathers windrowed forage from the field, compacts it into cylindrical bales, and binds them with nylon net wrapping.
AGRICM Round Baler is a forage harvesting machine designed primarily for field pickup and baling operations. This machine automatically gathers windrowed forage from the field, compacts it into cylindrical bales, and binds them with nylon net wrapping.
AGRICM Round Baler is a forage harvesting machine designed primarily for field pickup and baling operations. This machine automatically gathers windrowed forage from the field, compacts it into cylindrical bales, and binds them with nylon net wrapping.
| Technical Specifications | 6110 | 6112 | 6314 | 6714 |
| Working Width (mm) | 1,730 | 2,020 | 2,260 | 2,260 |
| Spring Tooth Spacing (mm) | 67 | 67 | 67 | 67 |
| Number of Spring Tooth Rows | 4 | 4 | 4 | 4 |
| Roller Speed (r/min) | 150 | 123 | 123 | 123 |
| Max. Spring Tooth Rotation Radius (mm) | 285 | 290 | 210 | 280 |
| Number of Rollers | 16 | 18 | 18 | 18 |
| Bale Dimensions (mm) | 950×1000 | 1200×1200 | 1200×1400 | 1200×1400 |
| Terrain Following System | Floating Spring | Floating Spring | Floating Spring | Floating Spring |
| Required Tractor Power (KW) | 35-62 | 59-100 | 59-100 | ≥88.2 |
| PTO Speed (rpm) | 540 | 540 | 540 | 540 |
| Overall Dimensions (mm) | 3150×2200×1950 | 4250×2800×2300 | 4100×3010×2300 | 4345×3010×2410 |
| Machine Weight (kg) | 1,800 | 3,550 | 3,660 | 3,895 |
| Rear Chamber Cylinder Stroke (mm) | 312 | 595 | 595 | 480 |
| Pickup Adjustment | Manual | Hydraulic | Hydraulic | Hydraulic |
| Tire Specifications | 10.0/75-15.3 | 500/45-22.5 | 500/45-22.5 | 500/45-22.5 |
The AGRICM 6714 round baler is equipped with a programmable controller and features a computerized display panel, enabling both fully automatic and semi-automatic baling operations. The upgraded automatic control system allows operators to adjust displacement sensor parameters through the setting buttons on the display panel while monitoring real-time bale chamber pressure on the screen.
When excessive feeding causes rotor or chamber blockage, the system can automatically switch from the pickup control to chamber control mode. This unique feature enables cab-controlled automatic opening and closing of the chamber, providing users with an innovative operating experience.
The machine is designed to work with wheeled tractors of 120 horsepower or above and can be operated by a single driver. It features fully automated baling process control and automatic chamber operation for worry-free performance. Three integrated cameras allow the operator to monitor the pickup mechanism, net wrapping, power transmission, and chamber operation directly from the cab, significantly reducing labor intensity and improving operational comfort.
Suitable for various natural grasslands, cultivated pastures and flat farmland operations, the machine also supports stationary operation with manual or mechanical feeding methods.
